4 AWG DLO Diesel Locomotive Cable RHH/RHW-2 Black 2000V
Click Thumbnails to Enlarge   APPLICATION

• 4 AWG DLO Cable Designed for uses requiring a Flexible Heavy Duty Power Cables.
• For Portable or Fixed installations
• Leads for Motors, Generators, Batteries, Jumper Cables
• Deep well Submersible Pump Cable
• For use in Renewable Energy Applications.
• Shipyard and Railroad Applications

FEATURES

• UL listed RHH/RHW-2 600V and 2000V for black jacket
• Rated 2kV DLO, 1kV RW90
• 90˚C (dry) 90˚C (wet)
• Ozone, sunlight, oil, grease, weather, water, chemical and abrasion resistant jacket
• Rated RW90-TC (Tray Cable) for sizes 1/0 AWG and larger
• MSHA,VW-1, SUN RES, FOR CT USE for sizes 1/0 AWG and larger and for black jacket
• Limited Smoke (LS) ST1 in accordance with (UL) 1685
• CSA listed RW90, RW90-TC (for black jacket) 1kV

CONDUCTOR

• Flexible strand tin coated copper conductor, B-172, ASTM B-33

SEPARATOR

• Flexible strand tin coated copper conductor, B-172, ASTM B-33

INSULATION

• Ethylene-propylene rubber (EPR)

JACKET

• Black Heavy Duty Thermoset CPE Jacket

STANDARDS

• UL: E193954 (CPE jacket) RHW-2 90C wet and dry, VW-1, Sun Resistant, for 1/0 and larger ST-1, FT-4, IEEE1202, for CT use
• CSA: 1101269 LL103932: 205591; RW-90 90C; FT1; FT4; -40C; for 1/0 AWG and larger: OIL Resistant, Tray Cable, Sun Resistant
• MSHA: P-7268080-01-MSHA

DISCLAIMER

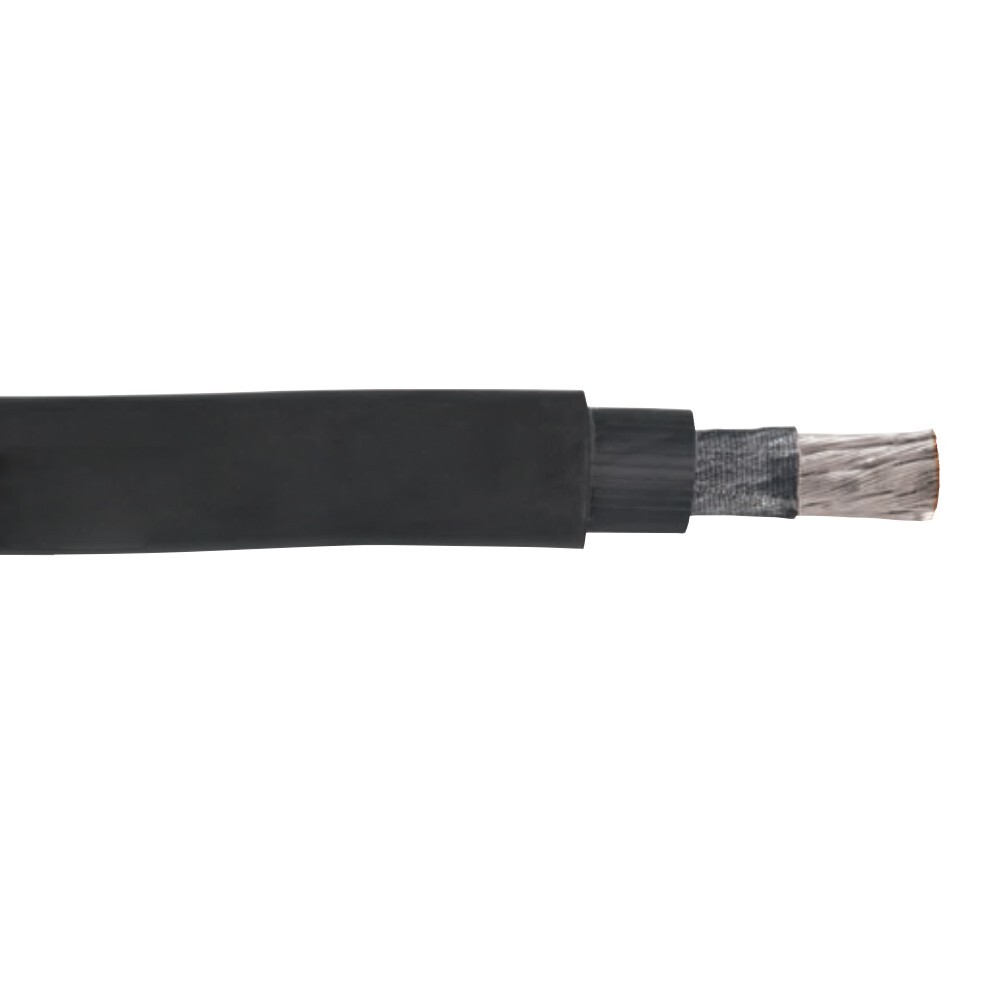

• Picture May Not Represent Actual Cable and Is Only Used As A Representation Please Refer to The Specifications For Product Accuracy.

PRODUCT SPECIFICATIONS Size 4 AWG Number of Strands 105 Insulation Thickness (inches) 0.060 Jacket Thickness (inches) 0.030 Overall Diameter (inches) 0.413 Ampacity 30°C in Air 140 Amps Weight (Lbs/1000ft) 190 CUT TO LENGTH

Looking for Custom Lengths? Please feel free to contact us, We can do all cut to lengths.
